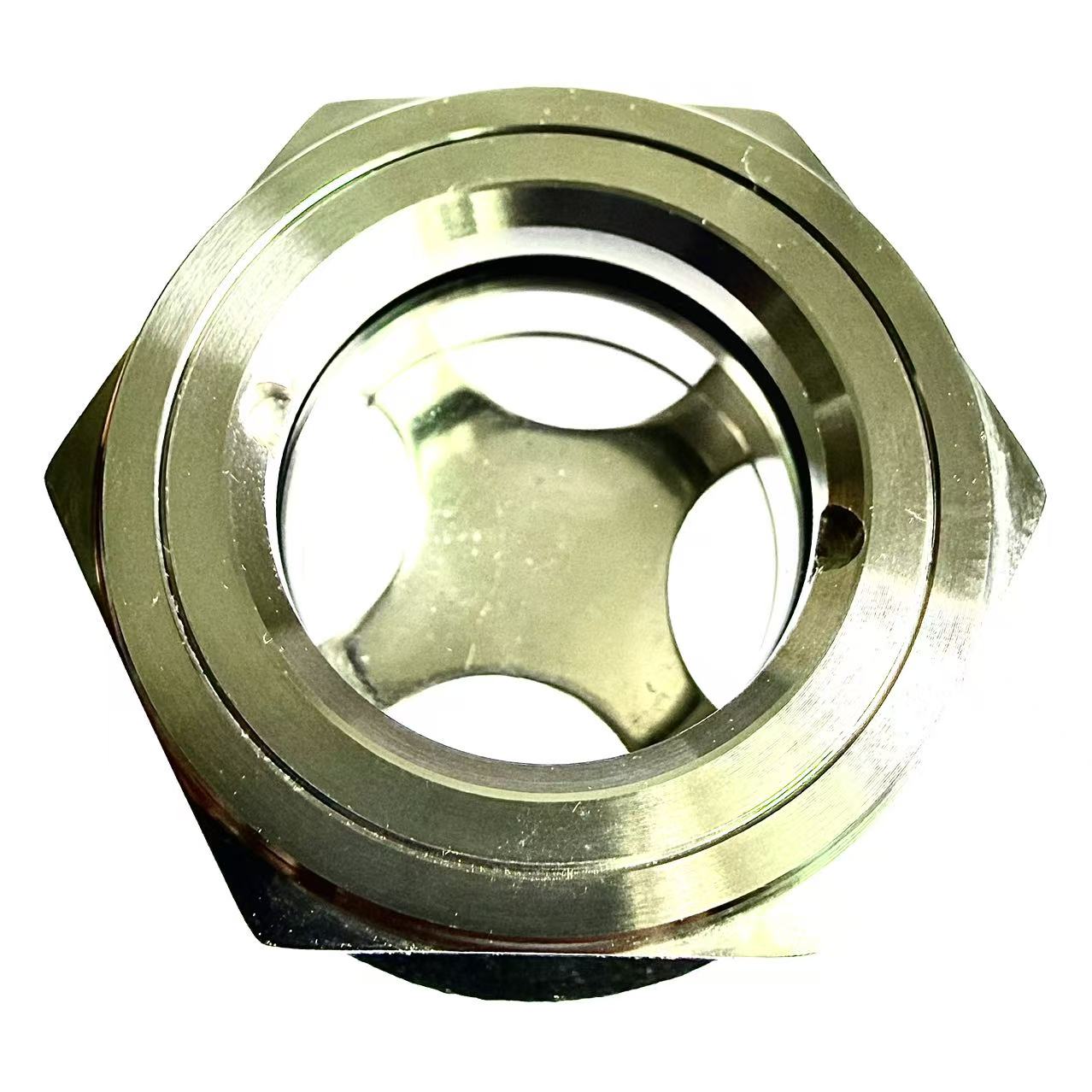

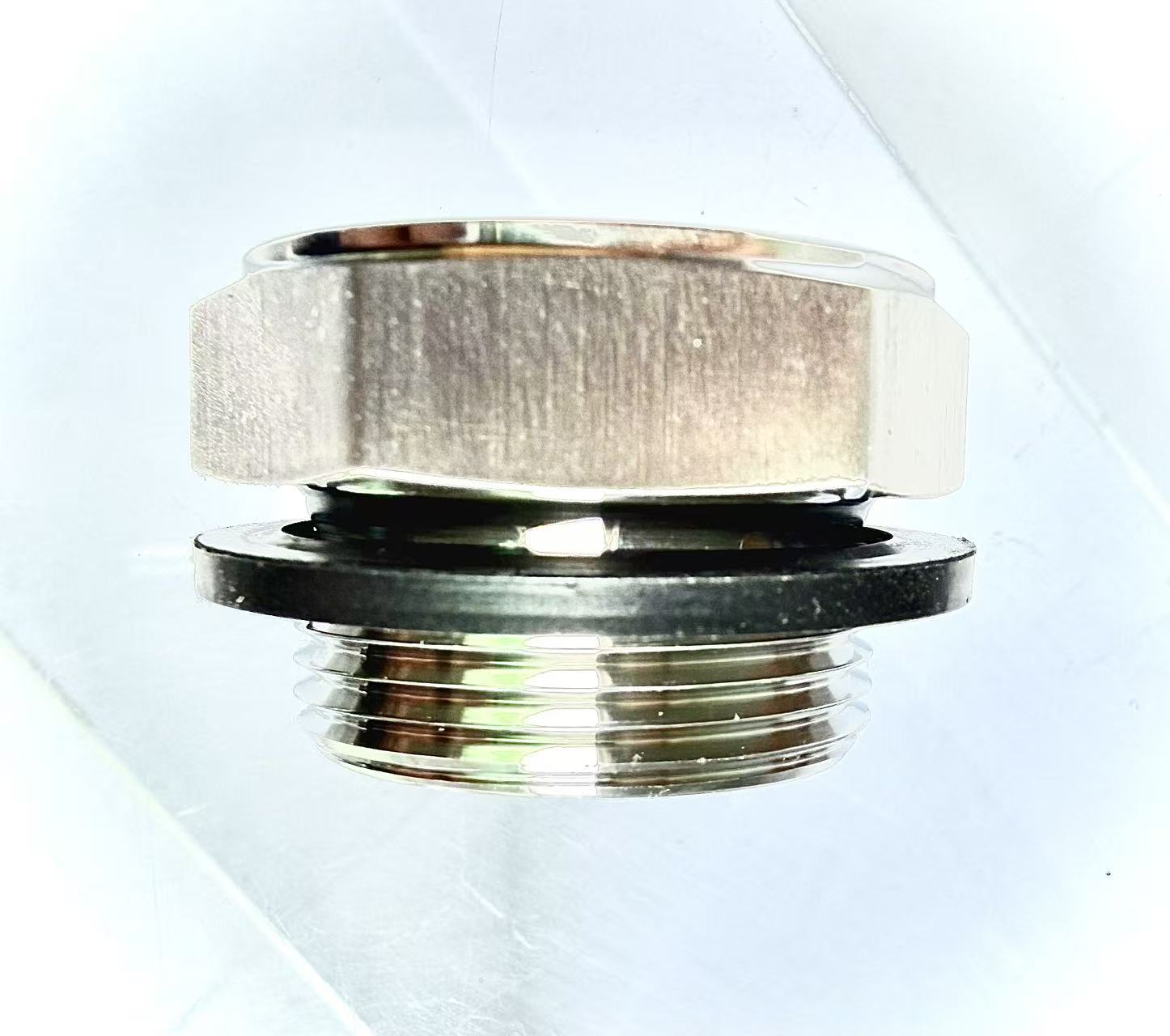

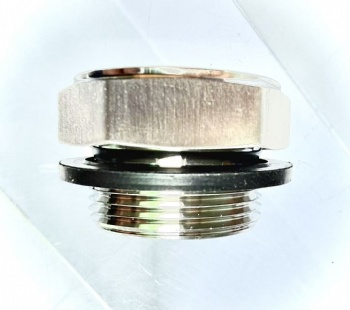

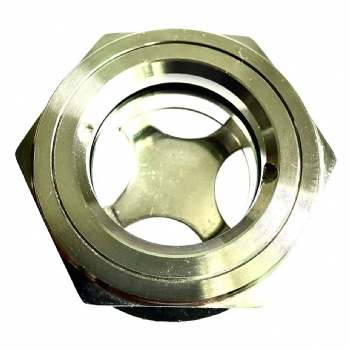

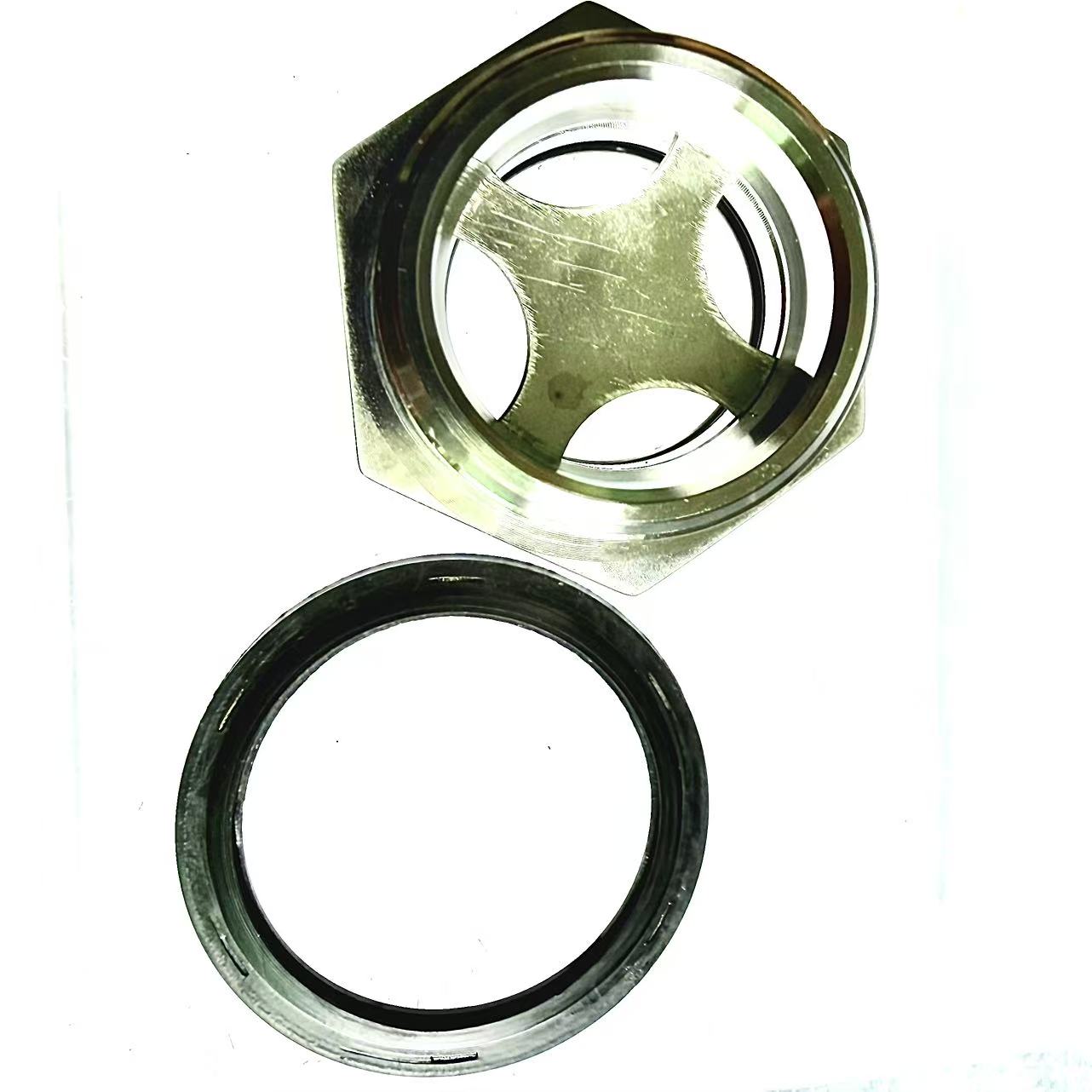

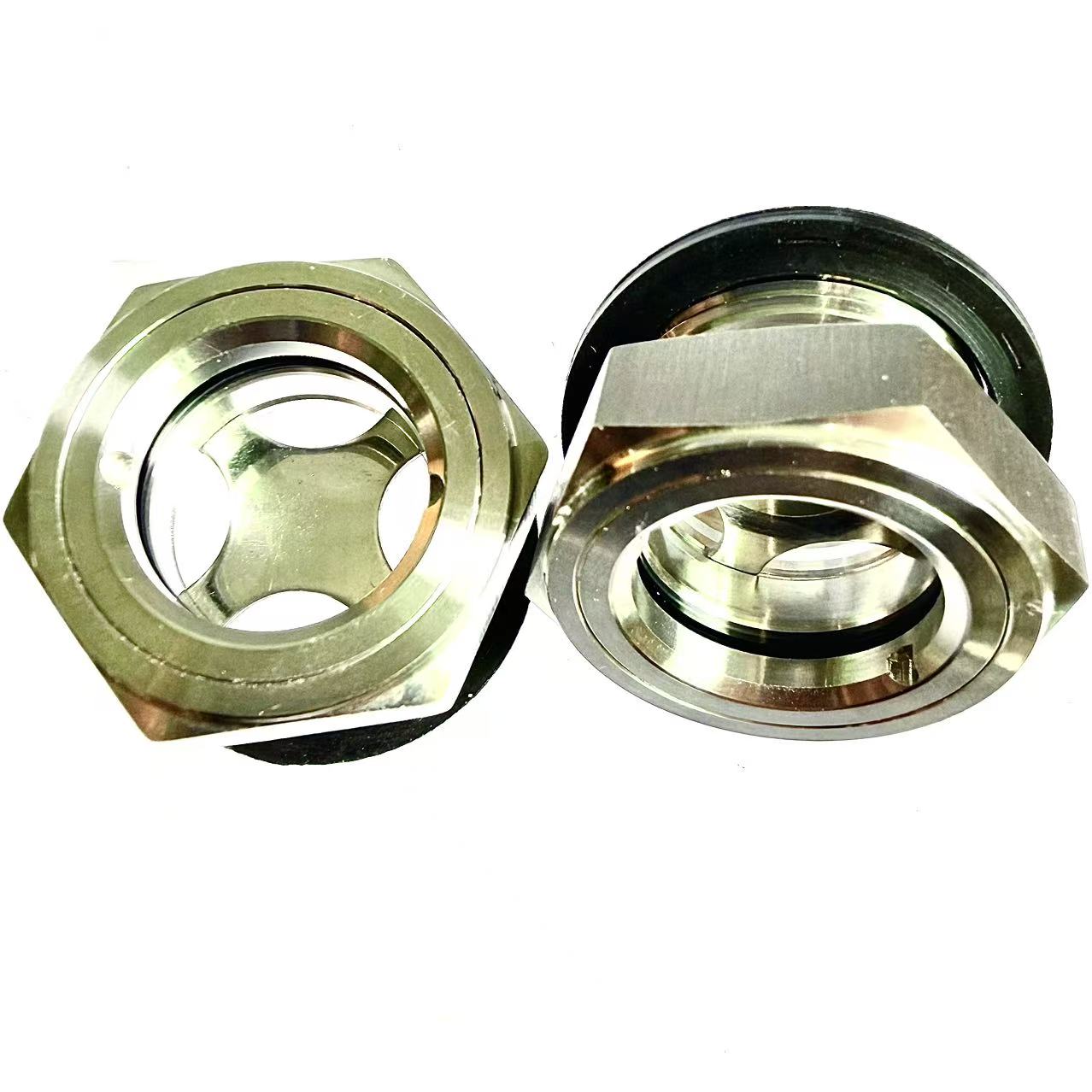

Metric stainless steel oil sight glasses

This level indicator features a reduced and polygonal wrench, with an inclination of the internal cavity that prevents oil stagnation and facilitates reading its level inside a tank.

The version with a glass sight glass and internal FKM O-ring is particularly suitable for high temperatures and aggressive fluids and can be used in gearboxes, heat systems, and reducers.

Note: The indicated pressure values (p max) refer to the recommended tightening torque (Cs max) under non-impulsive test conditions.


APPLICATIONS: Hydraulics and Pneumatics, Automotive, HVAC, Agricultural Machinery.

Contact Us

Reflector behind the glass helps see oil levels, presence of liquids, color, quality of a fluid. 304 Stainless Steel Gasketed Glass Sight for visual observation of liquid levels and their condition. These sight glasses are typically used in any application where oil or fluid inspection is essential. The housing is a 304 Stainless Steel fitting with U.S. standard NPT threads conforming to ASME B1.20.1. Use traditional installation tools and Teflon tape or pipe sealant. These sight glasses have a Buna-N internal seal for good chemical compatibility with Petroleum oils and fluids; Cold Water; Silicone greases and oils; Dibasic Acid Ester (Diester) based lubricants (MIL-L-7808); Ethylene glycol base fluids (Hydrolubes). Not Recommended for: Halogenated hydrocarbons (carbon tetrachloride, trichloroethylene); Nitro hydrocarbons (nitrobenzene, aniline); Phosphate ester hydraulic fluids (Skydrol, Fyrquel, Pydraul); Ketones (MEK, acetone); Strong Acids Ozone; Automotive brake fluid.



FPY-S061M6020M60x2.070281548
FPY-S061M6015M60x1.570281548
FPY-S061M5215M52x1.560281543
FPY-S061M4815M48x1.555271538
FPY-S061M4215M42x1.550271533
FPY-S061M4015M40x1.548271533
FPY-S061M3615M36x1.546261528
FPY-S061M3315M33x1.540261525
FPY-S061M3215M32x1.538221225
FPY-S061M3015M30x1.536221222
FPY-S061M2715M27x1.532211220
FPY-S061M2615M26x1.532211219
FPY-S061M2415M24x1.529211218
FPY-S061M2215M22x1.527211216
FPY-S061M2015M20x1.527211213.75
FPY-S061M1815M18x1.524211212
FPY-S061M1615M16x1.522211210
FPY-S061M1415M14x1.51920119
FPY-S061M1215M12x1.51719107.5
FPY-S061M1010M10x1.01619106

Article

D(Thread)SW(mm)L(mm)L1(mm)d(mm)Weight(g)
